Key specifications
- Process connection
- G 1/4 female, G 3/8 female
- Pressure range
- 1 bar, 2.5 bar, 4 bar, 4.6 bar, 5.2 bar, 6 bar, 7 bar, 7.6 bar, …
- Contacts
- 1CO, 2CO, 2NC, 3NC
- Number of variants
- 84
Selected size:
Product Description
Pressure switch that changes its electrical contact state according to the pressure value. 84 model variants are available. Main options: Process connection: G 1/4 female, G 3/8 female; Pressure range: 1 bar, 2.5 bar, 4 bar, 4.6 bar etc; Contacts: 1CO, 2CO, 2NC, 3NC. For a quotation, please send us the size, output/contact type, connection and operating voltage you need.
Technical Specifications
| Process connection | G 1/4 female, G 3/8 female |
|---|---|
| Pressure range | 1 bar, 2.5 bar, 4 bar, 4.6 bar, 5.2 bar, 6 bar, 7 bar, 7.6 bar, … |
| Contacts | 1CO, 2CO, 2NC, 3NC |
| Number of variants | 84 |
Applications
- Compressor, pump and booster control
- Hydraulic and pneumatic pressure monitoring
- Pressure measurement in process lines
Information Needed for a Quote
- Pressure range and set point
- Switch (contact) or sensor (analogue output)
- Fluid and process connection
- Electrical connection and quantity
Selection and Usage Notes
- Setting the hysteresis (on-off difference) on a pressure switch prevents frequent cycling.
- Check compatibility of wetted materials (diaphragm, seal) with the fluid.
Frequently Asked Questions
How do I choose between a switch and a sensor?
Use a switch for on-off at a set value, a sensor for continuous measurement and monitoring.
Can the set point be changed on site?
On adjustable models, yes, by the setting screw or menu.
🔗 Share this product
Send the product page to your team or purchasing contact.
Other products in this group

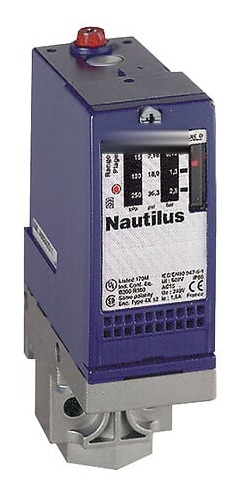

Fixed Setting Pressure SwitchPressure switch that changes its electrical contact state according to the pressure value.View details

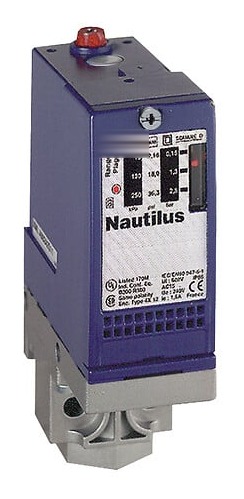

Vacuum SwitchPressure switch that changes its electrical contact state according to the pressure value.View details

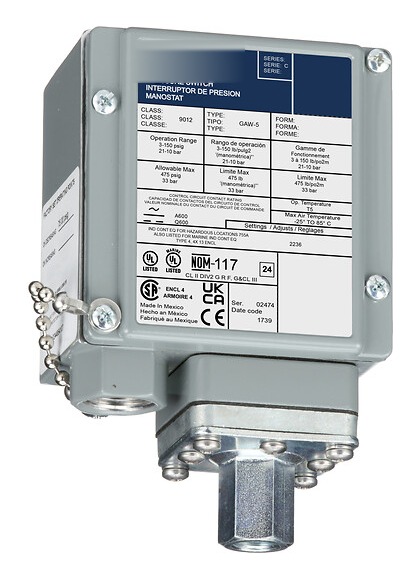

Industrial Pressure Switch (NEMA)Pressure switch that changes its electrical contact state according to the pressure value.View details ← Back to group: Pressure Switches
