Key specifications
- Process connection
- G1/4A, G1/4A female, G1/4A male
- Pressure range
- -1 bar, -1 to 1 bar, -1 to 5 bar, 0 to 1 bar, 0 to 10 bar, 0 to 100 bar, 0 to 16 bar, 0 …
- Voltage
- 24 V, 24 VDC
- Connection
- M12 connector
Selected size:
Product Description

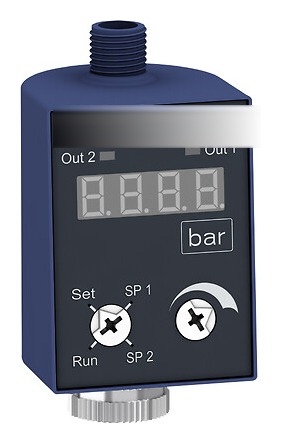

Electronic pressure sensor that measures pressure and converts it to an analogue or digital output signal. 114 model variants are available. Main options: Process connection: G1/4A, G1/4A female, G1/4A male; Pressure range: -1 bar, -1 to 1 bar, -1 to 5 bar, 0 to 1 bar etc; Voltage: 24 V, 24 VDC. For a quotation, please send us the size, output/contact type, connection and operating voltage you need.
Technical Specifications
| Process connection | G1/4A, G1/4A female, G1/4A male |
|---|---|
| Pressure range | -1 bar, -1 to 1 bar, -1 to 5 bar, 0 to 1 bar, 0 to 10 bar, 0 to 100 bar, 0 to 16 bar, 0 to 25 bar, … |
| Voltage | 24 V, 24 VDC |
| Connection | M12 connector |
| Number of variants | 114 |
Applications
- Compressor, pump and booster control
- Hydraulic and pneumatic pressure monitoring
- Pressure measurement in process lines
Information Needed for a Quote
- Pressure range and set point
- Switch (contact) or sensor (analogue output)
- Fluid and process connection
- Electrical connection and quantity
Selection and Usage Notes
- Setting the hysteresis (on-off difference) on a pressure switch prevents frequent cycling.
- Check compatibility of wetted materials (diaphragm, seal) with the fluid.
Frequently Asked Questions
How do I choose between a switch and a sensor?
Use a switch for on-off at a set value, a sensor for continuous measurement and monitoring.
Can the set point be changed on site?
On adjustable models, yes, by the setting screw or menu.
