About this product

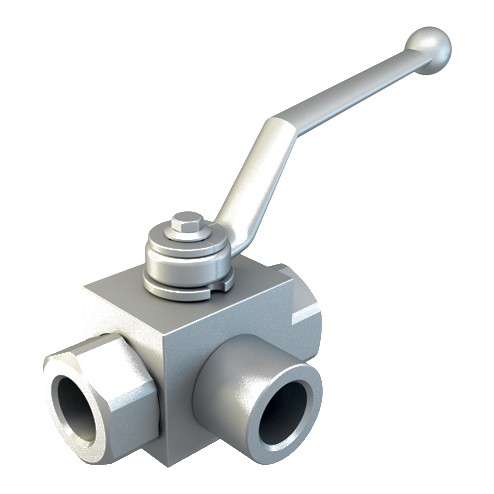

Steel-body ball valve for on/off control in high-pressure lines. For a quote, please send the working pressure, flow rate and connection size.
- Power units and machine connections
- Construction machinery and agricultural equipment
- Attachment lines that are connected and disconnected quickly
Selected size:
Technical Specifications
Selection parameters
| Inner diameter (DN) and pressure | Selected for flow and system pressure |
|---|---|
| Hose construction | Wire braided (1SN, 2SN) or spiral (4SP, 4SH), etc. |
| Connection type | Thread (BSP, metric, JIC, ORFS), cone/flat seat |
| Temperature and fluid | Hydraulic oil, water-glycol, fuel, etc. |
| Length and end orientation | Hose length and fitting angles (straight, 45°, 90°) |
Applications
- Power units and machine connections
- Construction machinery and agricultural equipment
- Attachment lines that are connected and disconnected quickly
- Pressure gauge and test point connections
Information Needed for a Quote
- Product type and size (hose DN, fitting thread, coupling size)
- Operating pressure
- End fittings and hose length
- Quantity
Selection and Usage Notes
- Choose a hose rated for the peak system pressure and do not go below its minimum bend radius.
- Different thread standards look alike; when unsure, check the thread with a caliper and thread gauge.
Frequently Asked Questions
Do you make up hoses to length?
Yes. We quote assembled hoses from the hose type, length and the fittings at both ends.
How do I identify a fitting thread?
Measure the outside diameter and thread pitch, or send a photo of the existing part.
