Key specifications
- Housing material
- Metal, Plastic
- Contacts
- 2NC+1NO, 2NC+2NO
- Connection
- Cable 1 m, Cable 2 m, Cable 5 m
- Cable entry
- 1/2" NPT, Pg 13.5, M20 x 1.5, M20x1.5
Selected size:
Product Description

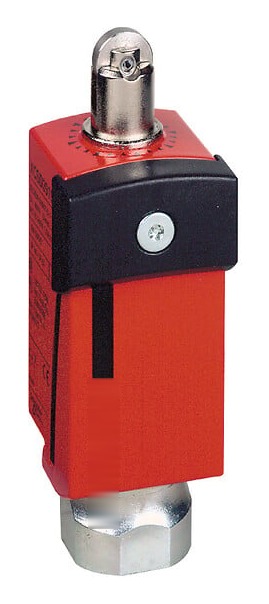

Safety switch that monitors the position of machine guards and doors. 38 model variants are available. Main options: Housing material: Metal, Plastic; Contacts: 2NC+1NO, 2NC+2NO; Connection: Cable 1 m, Cable 2 m, Cable 5 m. For a quotation, please send us the size, output/contact type, connection and operating voltage you need.
Technical Specifications
| Housing material | Metal, Plastic |
|---|---|
| Contacts | 2NC+1NO, 2NC+2NO |
| Connection | Cable 1 m, Cable 2 m, Cable 5 m |
| Cable entry | 1/2" NPT, Pg 13.5, M20 x 1.5, M20x1.5 |
| Number of variants | 38 |
Applications
- Interlocking machine guard doors and covers
- Access control to hazardous areas (light curtains)
- Pull-wire emergency stops on conveyor lines
Information Needed for a Quote
- Application and required safety level (PL / SIL)
- Product type (locking switch, coded magnetic, RFID, light curtain, pull-wire)
- Protected height/resolution or rope length
- Safety relay/controller needs and quantity
Selection and Usage Notes
- Safety devices must be assessed together with a suitable safety relay or safety PLC, not on their own.
- The light curtain's distance from the hazard must be calculated from the machine stopping time.
Frequently Asked Questions
What are the advantages of coded magnetic switches?
They are non-contact, hard to defeat and long-lasting in hygienic or dirty environments.
Do you offer machine safety consulting?
We provide technical support on machine safety products and applications; tell us what you need.
🔗 Share this product
Send the product page to your team or purchasing contact.
Other products in this group
Key-Actuated Safety SwitchSafety switch that monitors the position of machine guards and doors.View details

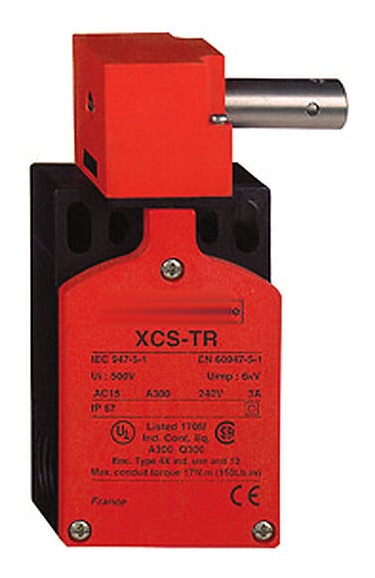

Hinge Safety SwitchSafety switch that monitors the position of machine guards and doors.View details ← Back to group: Safety Switches
